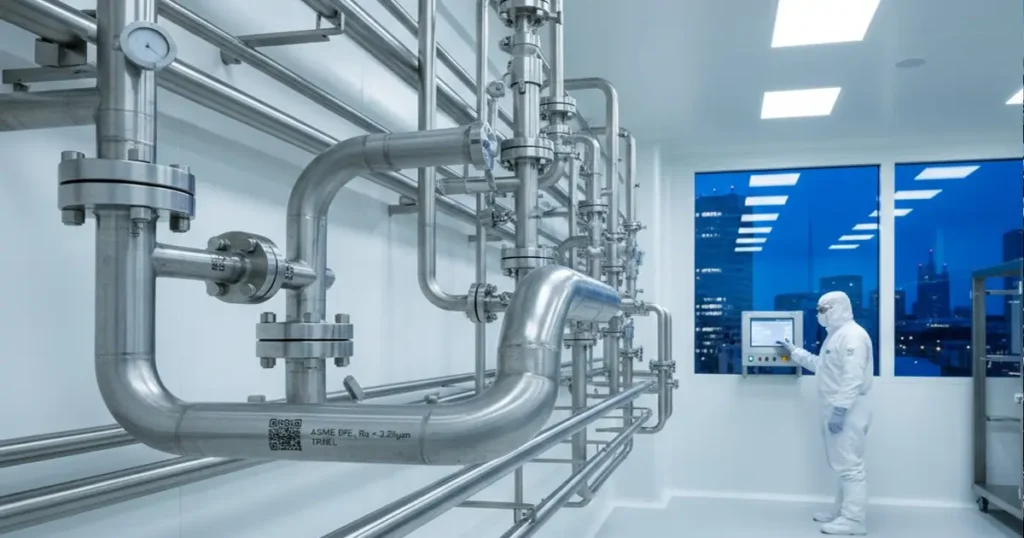

Supplying Ultra-Clean Stainless Steel Fluid Control Systems for Top-Tier Biopharmaceutical Labs in Switzerland

Project Overview

Location: Basel, Switzerland
Client: A Leading Global Life Sciences Multinational
Products Supplied: ASTM A270 TP316L ASME BPE Compliant Electro-Polished (EP) Stainless Steel Seamless Tubes
Supply Scope: High-purity delivery lines, distribution valve manifolds, and sanitary clamp systems.

The Challenges

In biopharmaceuticals, any trace of cross-contamination or microbial growth can lead to millions of euros in wasted drug batches. The client faced critical requirements for its monoclonal antibody (mAbs) production line expansion:

Biofilm Accumulation Risk: Microscopic crevices in standard industrial piping can harbor proteins and lead to Biofilm formation, which conventional Clean-in-Place (CIP) systems struggle to eradicate.
Corrosive Sterilization Cycles: Systems must withstand frequent Steam-in-Place (SIP) at over 121°C and aggressive alkaline cleaning agents, requiring high thermal stability and chemical inertness.
Global Compliance Audits: The facility had to pass rigorous GMP audits by the FDA and EMA, requiring flawless documentation for all product-contact surfaces.

Our Detailed Solution

To meet the “absolute sterility” demands of the Swiss pharmaceutical giant, we delivered a system-wide solution adhering to the highest ASME BPE standards:

A. Advanced Electro-Polishing (EP) Technology

Beyond mechanical polishing, we performed deep Electro-Polishing (EP) on the inner walls. This electrochemical process removes the iron-rich surface layer, creating a chromium-rich, ultra-smooth finish with a surface roughness (Ra) strictly controlled below 0.25μm (10 μin).

B. Controlled Sulfur Content for Precision Welding

To facilitate the client’s Orbital Welding on-site, we precision-controlled the Sulfur content within a narrow band of 0.005% – 0.017%. This ensures a stable weld pool and prevents arc wandering, resulting in perfectly consistent, hygienic joints.

C. Dead-Leg Free Component Customization

We supplied customized U-tees and integrated manifolds designed to minimize “Dead-Legs.” This design ensures that cleaning fluids circulate through every corner of the system, eliminating any potential stagnant zones for bacteria.

D. Full Lifecycle Digital Traceability

Each tube is laser-marked with a unique traceability code. We provided a comprehensive “Turnover Package,” including MTC 3.1, EP Surface Finish Reports, and USP Class VI compliance for gaskets, enabling a seamless EMA audit process.

Results & Customer Value

The production line has demonstrated exceptional performance:

30% Increase in Cleaning Efficiency: The ultra-smooth EP surface significantly shortened CIP cycles and reduced chemical consumption.
Zero Cross-Contamination Incidents: Microbial monitoring has maintained a 100% pass rate over 12 consecutive months of production.
Accelerated Regulatory Approval: Our high-standard materials helped the client obtain mass-production licenses from regulatory bodies ahead of schedule.

Customer Testimonial

“In bioprocessing, material purity directly dictates drug quality. The EP tubes from WANHE steel group delivered staggering levels of surface smoothness and welding consistency. Their strict adherence to BPE standards gave us total confidence during complex GMP audits.” — Chief Process Engineer, Leading Pharmaceutical Group in Basel
